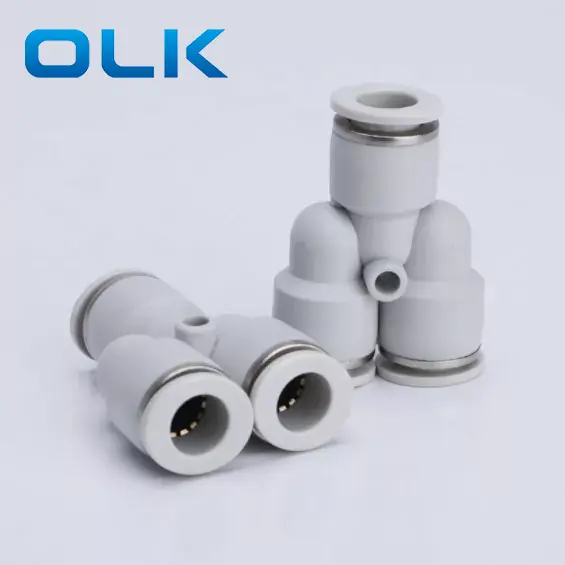

Py Union y skubber ind i røret

Py

8

Model

Rørstørrelse (metrisk)

PY -serie montering

4: 4mm

6: 6mm

8: 8mm

10: 10mm

12: 12 mm

14: 14mm

16: 16mm

Væske

Luft/vand (betinget)/vakuum

Driftspress

0-1,0MPa

Vakuumtryk

-100 kpa (10 torr)

Driftstemperatur

-10-60 ℃

Materiale

Nylon (PA), polyurethan (PU)

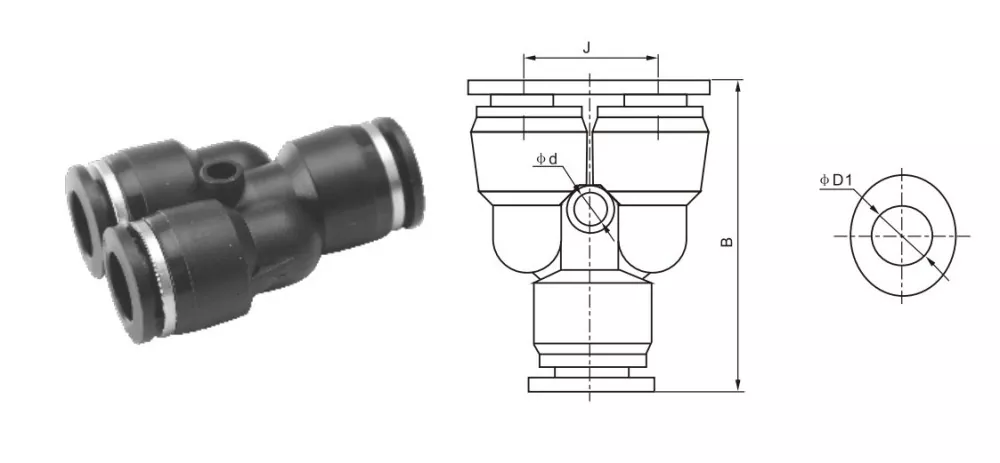

Tomme rørmontering

Metrictube -montering

φd

B

J

φd

PY5/32

PY-4

4

38

11.6

2.5

PY1/4

PY-6

6

39

13.3

3.5

PY5/16

PY-8

8

42.5

15.5

4.5

PY3/8

PY-10

10

48

38.5

4.5

PY1/2

PY-12

12

54

21.5

4

Common Imperial Thread Size Conversion Reference

Imperial størrelse

Ca. Metrisk (mm)

Konverteringsformel

1/8

3,2 mm

1 ÷ 8 × 25,4 = 3,175

5/32

3,97 mm

5 ÷ 32 × 25,4 = 3,97

1/4

6,35 mm

1 ÷ 4 × 25,4 = 6,35

5/16

7,94 mm

5 ÷ 16 × 25,4 = 7,94

3/8

9,53 mm

3 ÷ 8 × 25,4 = 9,53

1/2

12,7 mm

1 ÷ 2 × 25,4 = 12,7
